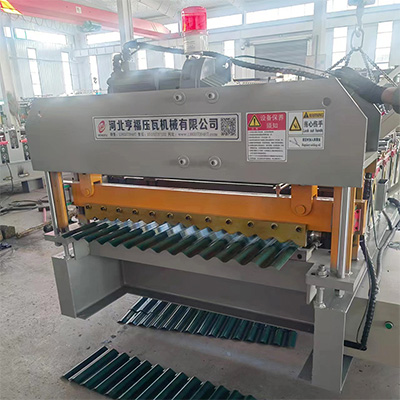

Detailed Explanation of the Working Principle and Characteristics of the Corrugated Sheet Roll Forming Machine

I. Introduction

As a kind of equipment specifically used for producing corrugated tiles, the Corrugated Sheet Roll Forming Machine plays an important role in the construction industry. It can not only improve production efficiency but also ensure product quality. This article will introduce in detail the working principle and characteristics of the Corrugated Sheet Roll Forming Machine to help users better understand and use this type of equipment.

II. Working Principle

1. Sheet feeding

Firstly, the metal sheet (such as color steel plate, galvanized sheet, etc.) is sent into the tile press machine through the feeding device. The feeding device usually includes an automatic pay-off rack and an adjusting device to ensure the sheet enters the machine smoothly and continuously.

2. Roll forming

After the sheet enters the tile press machine, it is gradually formed through the continuous rolling of multiple sets of rollers. These rollers are arranged according to the pre-designed shape, and the sheet is processed into the required tile shape through multiple rollings. The number and arrangement of the rollers determine the final tile shape and specification.

3. Cutting and forming

When the sheet is roll-formed, it enters the cutting device. The cutting device automatically cuts the tile according to the predetermined length to ensure that the length of each tile is consistent. The cutting device usually uses a hydraulic system or servo motor control, with high cutting accuracy and efficiency.

4. Finished product output

The cut tiles are conveyed to the designated location for stacking or packaging through the output device. The output device usually includes a conveyor belt and an automatic stacking system, which is convenient for the finishing and handling of the finished products.

III. Main Characteristics

1. High efficiency and stability

The Corrugated Sheet Roll Forming Machine adopts an automated control system, which can achieve efficient and stable production. Through PLC control, the operating parameters of each process can be accurately controlled to improve production efficiency and product quality.

2. Diversified forming

The Corrugated Sheet Roll Forming Machine can produce tiles of different shapes and specifications by replacing the roller mold to meet the needs of different construction projects. Whether it is a corrugated tile, a trapezoidal tile, or other complex-shaped tiles, the Corrugated Sheet Roll Forming Machine can easily handle it.

3. Easy to operate

Modern Corrugated Sheet Roll Forming Machines are usually equipped with a human-machine interface (HMI), and operators can easily set and adjust production parameters through the touch screen. The operation is simple and intuitive, and even non-professionals can quickly get started.

4. Convenient for maintenance

The design of the Corrugated Sheet Roll Forming Machine takes into account the convenience of daily maintenance. The equipment structure is compact, and each component is easy to disassemble and clean. Through regular maintenance, the service life of the equipment can be effectively extended and the occurrence of faults can be reduced.

5. High production accuracy

The rollers and cutting devices of the Corrugated Sheet Roll Forming Machine adopt high-precision processing and assembly techniques to ensure the accurate size and beautiful appearance of each tile. Especially in large-scale production, the high precision and consistency performance of the Corrugated Sheet Roll Forming Machine is particularly prominent.

6. Energy saving and environmental protection

Modern Corrugated Sheet Roll Forming Machines focus on energy saving and environmental protection in the design. High-efficiency motors and energy-saving control systems are used to reduce energy consumption. In addition, the noise and waste generated during the operation of the equipment have also been effectively controlled and treated, which meets the environmental protection requirements.

IV. Conclusion

As a key equipment in the production of building materials, the Corrugated Sheet Roll Forming Machine has efficient and stable working performance and diversified forming capabilities, which makes it occupy an important position in the market. By understanding the working principle and characteristics of the Corrugated Sheet Roll Forming Machine, users can better select and use this type of equipment to improve production efficiency and product quality. I hope the introduction in this article can provide you with valuable information and help you understand the Corrugated Sheet Roll Forming Machine more deeply.If you need more information related to the Corrugated Sheet Roll Forming Machine, please feel free to contact us at any time, and we have professional technicians to answer your questions!
